Drinking Fountain With Bottle Filler

Product Code: DFBF

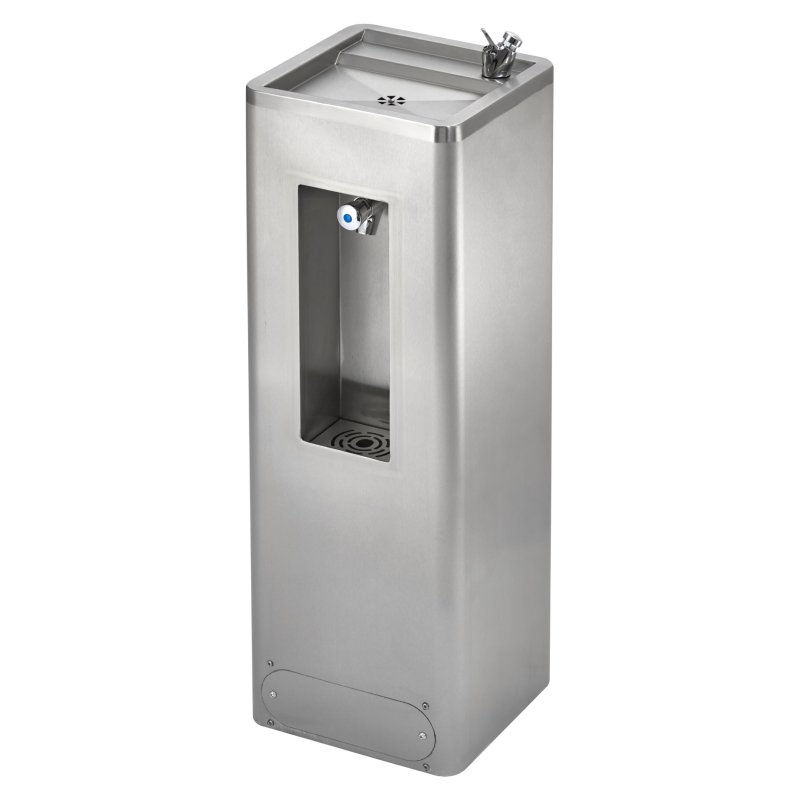

Floorstanding combined drinking fountain and bottle filling station - stainless steel
from £684.00 inc VATfrom £570.00 ex VAT
Choose Height

from £684.00 inc VATfrom £570.00 ex VAT

Drinking Fountain With Bottle Filler

Product Code DFBF-A

The drinking fountains with integral bottle filling units are designed to offer a vandal resistant dual purpose station where the user can either drink water, or fill their own water bottles. The integral bottle filler unit solves the two traditional problems associated with swan neck bottle fillers: users banging their heads on a swan neck filler fitted to a small fountain, and easily damage spouts.

A cover for the access hole can be added to make it free standing.

The drinking fountain with built in bottle filling station is available at full adult height of 900mm or junior height of 760mm. The fountains are designed to be wall and floor mounted and provide drinking water with the option to fill reusable water bottles.

The drinking water is dispensed from a WRAS approved self closing bubbler tap mounted on the top right hand side of the unit, whilst bottle filling water is dispensed through the recess in the front of the shroud via a WRAS approved timed flow tap at the top of the bottle filling recess. The self closing and timed flow valves both prevent taps being left running and wasting water. The bottle filler recess is designed to take all common 0.5, 0.75. and 1 litre drinking water bottles.

The unit is constructed from 304 grade stainless steel, and is supplied with flexible waste pipework, and 15mm compression connections on the taps.

Dimensions & Specifications:

Width: 300mm wide.
Depth: 300mm front to back.
Height: Adult 900mm high. Junior 760mm.

Material: Stainless steel - grade 304 - 1.2mm thick.

Bubbler tap: WRAS approved bubbler tap.

Recommended Mounting Heights For Drinking Water Fountains:

Adult: 900 to 915mm.
Junior: 762mm.
Infant: 690mm.
Secondary: 860mm.

Supplied With:

Wall and floor fixing holes.
Waste fittings with flexible pipework and connecting T piece.
WRAS approved chrome plated bubbler tap with with self closing valve.
WRAS approved bottle filling tap.


In stock, usually delivered in 1 to 2 working days.

**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**

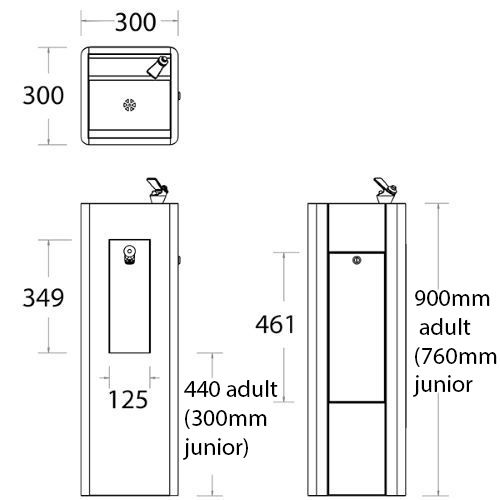

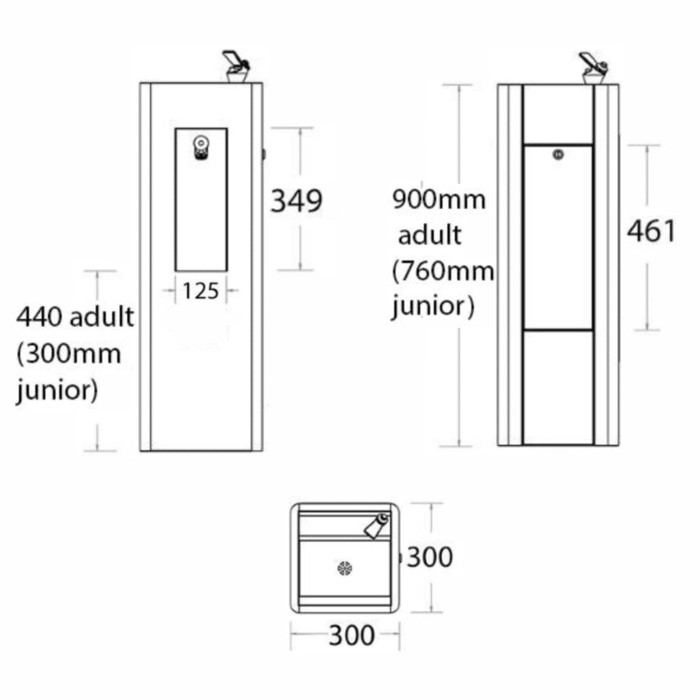

combined drinking fountain and bottle filler dimensions
