Foot Operated Drinking Fountain

Product Code: DFWH-FOP

Foot operated wall mounted drinking fountain with WRAS approved foot valve. Perfect for schools and public buildings
£480.00 inc VAT£400.00 ex VAT

£480.00 inc VAT£400.00 ex VAT

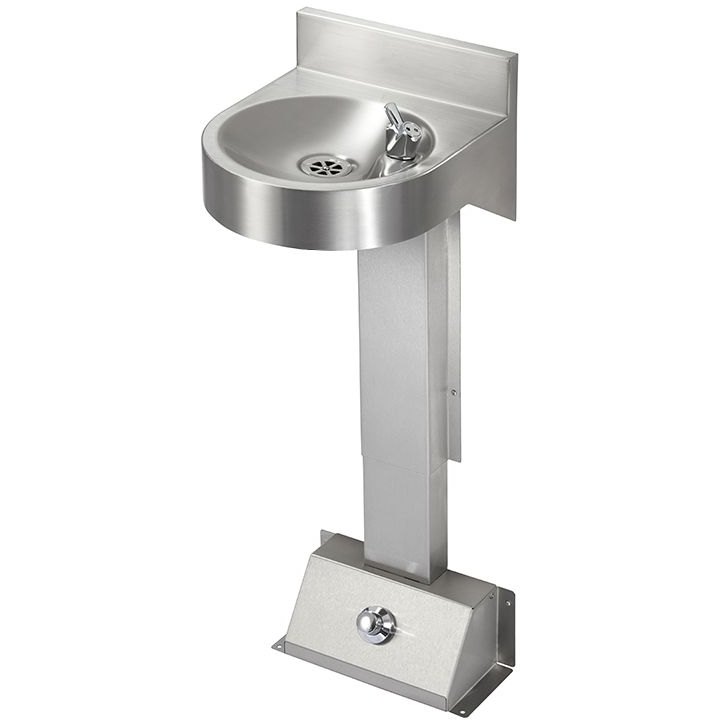

Wall Mounted Drinking Fountain with Foot Pedal

Product Code DFWH-FOP

The WRAS compliant drinking fountains are manufactured from 16 gauge grade 304 stainless steel for extra strength and durability. The wall mounted design offers the flexibility to mount the drinking water fountain at any height to suit the age of the users.

The drinking water bubbler tap and foot valve have been tested and approved by the WRAS Water Research Advisory Scheme to ensure it complies with the Water Supply (Water Fittings) Regulations or Scottish Byelaws.

The tap is conveniently located on the side of the fountain making it easier for users to drink without banging their heads.

The round front edge and 1.6mm thick material help prevent damage, and safeguard the users from injury associated with sharp edges and corners.

Supplied with a concealed wall bracket, WRAS approved tap, foot valve and waste fitting, this fountain provides you with a complete cost effective solution to provide drinking water, whilst ensuring you meet or exceed any water fittings regulations.

Dimensions & Specifications:

Width: 305mm.
Depth: 350mm from wall.
Height: 150mm plus 75mm rear upstand.
Telescopic Shroud: 500 - 900mm.

Material: 1.6mm thick - Stainless steel - grade 304.

Recommended Mounting Heights For Drinking Fountains:

Adult: 900 to 915mm.
Junior: 762mm.
Infant: 690mm.
Secondary: 860mm.

Supplied With:

Integral wall fixing brackets.
32mm flush grated waste fitting.
WRAS approved chrome plated bubbler tap.
WRAS approved foot valve and shroud.


In stock, usually delivered in 1 to 2 working days.

Optional Fountain Extras:

Wras approved bottle filler tap.
McAlpine plastic 32mm bottle trap.
Chrome plated brass 32mm bottle trap.

**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**

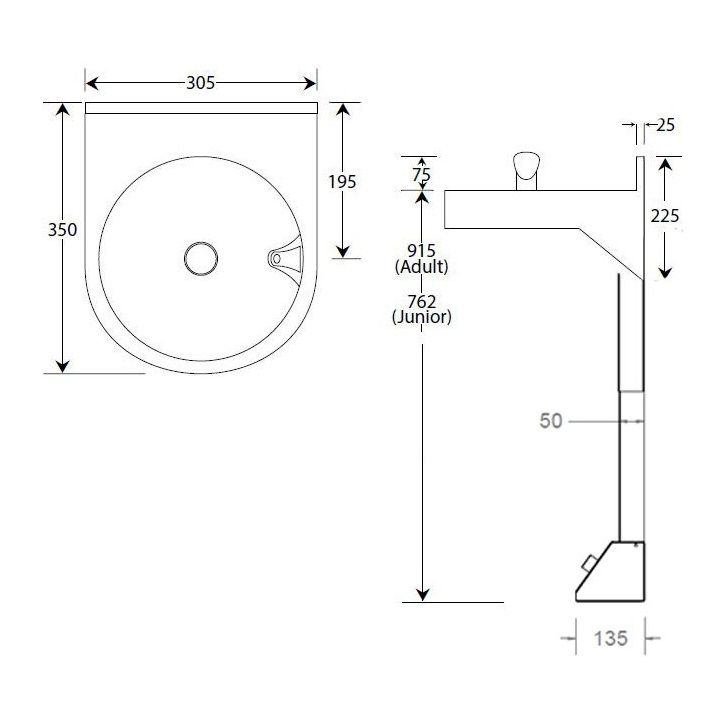

foot operated drinking fountain dimensions
