Wall Mounted Bottle Filler Fountain Wall Mounted Bottle Filler Fountain

Wall Mounted Bottle Filler Fountain

Product Code: DFWH-CF

Stainless steel wall mounted bottle filling fountain with WRAS approved swan neck filling spout, waste fitting and wall bracket
£253.20 inc VAT£211.00 ex VAT

£253.20 inc VAT£211.00 ex VAT

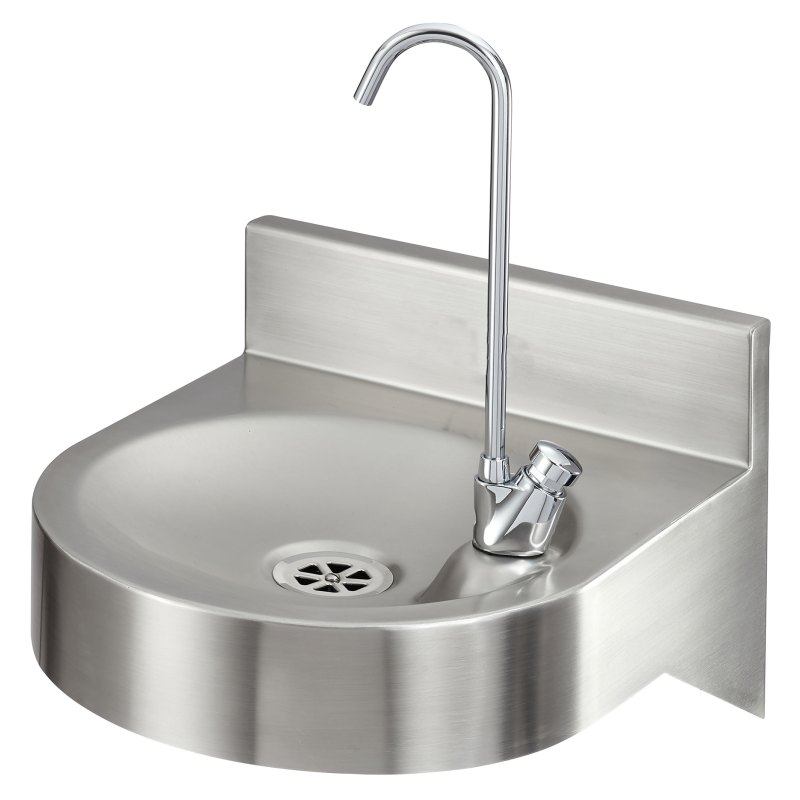

Wall Mounted Bottle Filling Fountain

Product Code DFWH-CF

The wall mounted cup and bottle filler fountain has a swan neck tap for filling drinking water bottles and cups.

Manufactured from grade 304 stainless steel 1.6mm thick the water bottle filling fountains are strong, durable and vandal resistant. The smooth satin polished finish along with a crevice free construction ensures the bottle filling station is easily cleaned, whilst the radius design front helps prevent injury.

The filler incorporates a self closing push button valve to prevent water wastage.

Supplied complete with a concealed wall fixing bracket, waste fitting and swan neck spout, and easily installed at the correct height.

Dimensions & Specifications:

Width: 305mm.
Depth: 350mm from wall.
Height: 150mm plus 75mm rear upstand.
Filler height: Spout height 247mm - 290mm overall height.

Material: Stainless steel - grade 304 - 1.6mm thick.

Bottle filler: Swan neck push button filler tap.

Recommended Mounting Heights For Bottle Filler Fountains:

Adult: 900 to 915mm.
Junior: 762mm.
Infant: 690mm.
Secondary: 860mm.

Supplied With:

Integral wall fixing brackets.
32mm flush grated waste fitting.
Standard chrome plated swan neck cup / bottle filler with self closing valve and 15mm water pipe compression coupler.


In stock, usually delivered in 1 to 2 working days.

Optional Fountain Extras:

McAlpine plastic 32mm bottle trap.
Chrome plated brass 32mm bottle trap.

**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**

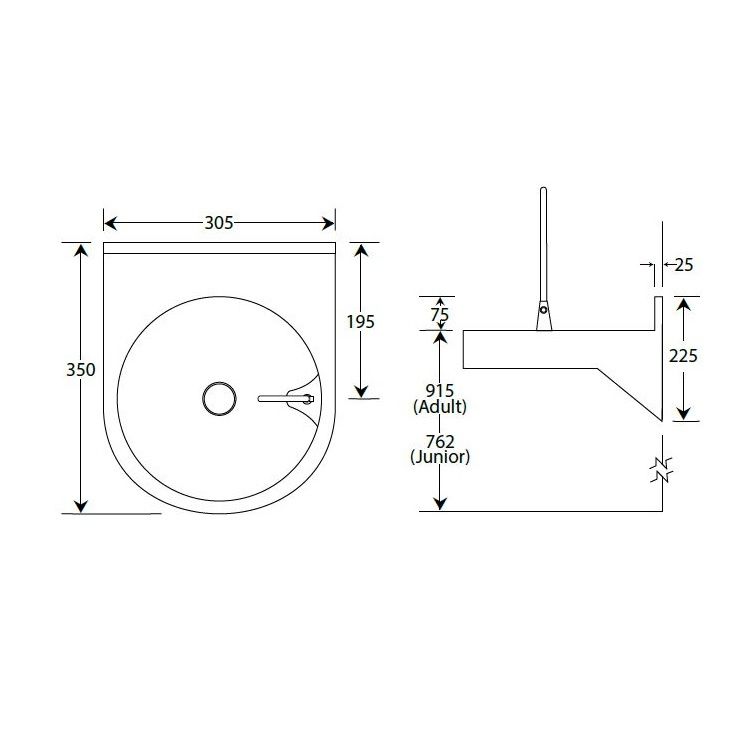

wall mounted bottle filler dimensions
