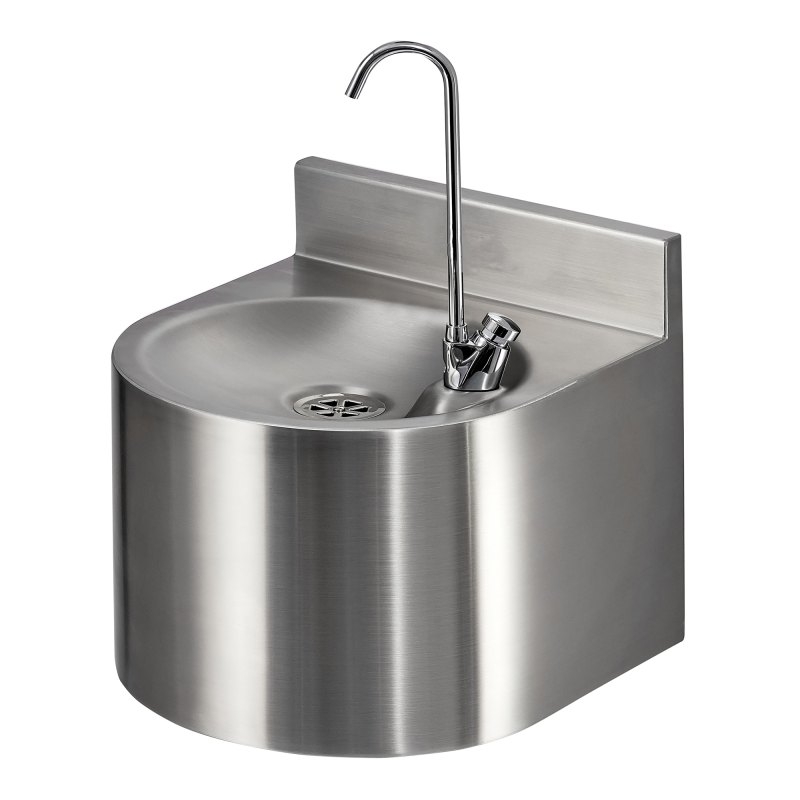

Wall Mounted Shrouded Bottle Filling Station Wall Mounted Shrouded Bottle Filling Station

Wall Mounted Shrouded Bottle Filling Station

Product Code: DFWHS-CF

Stainless steel wall mounted bottle and cup filling fountain with WRAS approved filling spout, undershroud, waste and wall bracket
£352.80 inc VAT£294.00 ex VAT

£352.80 inc VAT£294.00 ex VAT

Shrouded Bottle Filling Fountain - Wall Mounted

Product Code DFWHS-CF

The shrouded bottle and cup filling station is wall mounted and designed to facilitate dispensing drinking water into cups and bottles. Refilling reusable bottles helps users with daily ongoing hydration, and helps the environment by reducing reliance on disposable water bottles.

The chrome plated swan neck filler has a press button self closing valve, which ensures water is only dispensed when the button is depressed, and water is saved.

The shrouded bottle filler is manufactured from heavy duty 1.6mm thick grade 304 stainless steel with a half height undershroud, the bottle filling fountain is neat, tidy and extremely robust. Pipework is accessed through a removable access panel in the base which is retained by security screws. Polished to a satin finish and without open joints, the unit is easy to clean whilst the curved front design protects users and passers by from risk of injury.

This vandal resistant bottle filling station is small, compact and ideal for supplying drinking water in schools, colleges and public buildings.

Dimensions & Specifications:

Width: 305mm.
Depth: 350mm from wall.
Height: 245mm high plus 75mm rear upstand.
Bottle filler height: Spout height 247mm - 290mm overall height.

Material: Grade 304 stainless steel - 1.6mm thick.

Bottle filler: Swan neck push button bottle and cup filler tap.

Recommended Mounting Heights For Bottle Filling Fountains:

Adult: 900 to 915mm.
Junior: 762mm.
Infant: 690mm.
Secondary: 860mm.

Supplied With:

Integral wall fixing brackets.
32mm flush grated waste fitting.
Standard chrome plated swan neck cup / bottle filler with self closing valve and 15mm water pipe compression coupler.


In stock, usually delivered in 1 to 2 working days.

**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**

shrouded bottle filling station dimensions
